Last Updated January 28, 2026
TL;DR
- 32-inch (“32er”) wheels (686mm BSD) are now a legit race-legal direction for XC, with the UCI signaling no wheel-size cap for 2026.
- The performance upside is real on the right terrain: better rollover, more momentum retention, and more comfort/traction potential at similar pressures.
- The tradeoffs are equally real: higher rotational mass, slower acceleration, and less agility in tight, punchy, corner-heavy courses.
- For most riders, 29” remains the default best choice (fit, handling balance, parts availability, and bike options).
- The 32” ecosystem is early-stage but buyable in key categories (tires/forks/rims), with most complete bikes still prototype/limited-run.
Who it’s for
You’ll actually benefit from 32” wheels if you are:
- A competitive XC / marathon rider on fast, open courses (less stop-start, fewer tight switchbacks).
- A taller rider (roughly 6’3″+ / 190cm+) who often feels “on top” of modern bikes rather than “in” them.
- An ultra-endurance / gravel-adjacent rider prioritizing rollover + fatigue reduction over snap.
- An early adopter who’s OK with higher cost, fewer options, and more fit/compatibility homework.
You should stick to 29” if you are:
- Riding tight, technical trails where direction changes and acceleration matter most.
- Prioritizing easy parts access, wheel/tire choice, and shop support.
- A rider for whom stack/clearance packaging is already borderline on current 29” bikes.
What exists to buy in 2026 (the “real-world parts list”)
Tires
- Maxxis Aspen 32 x 2.4 (the key enabling “real MTB” tire that makes 32ers plausible outside of custom/unicycle rubber).
Forks
- Intend Samurai 32 (purpose-built 32” suspension fork; the most concrete “buyable” fork signal so far).
Rims / wheels
- Velocity Blunt 35 32 (686 BSD alloy rim — a practical entry point for builders).
- Nextie Unicorn 32 (686 BSD carbon rim — one of the clearest consumer-available carbon rim options).
- Duke Lucky Jack 32 (32” carbon rim option showing high-end XC intent).
- Prototype/limited: Bike Ahead BiTurbo 32 concepts are emerging, but availability is still niche.
Complete bikes
- Still mostly prototype / limited-run: this is the category most likely to lag behind tires/forks/rims.
Availability note (Jan 2026): Tires/forks/rims exist, but complete bikes and shop support are still limited. Expect long lead times, fewer sizes, and more custom-building vs off-the-shelf purchasing.
The mountain biking industry is currently navigating a period of architectural transition that rivals the upheaval of the early 2010s, during which the 26-inch wheel was effectively superseded by the 29-inch standard. This contemporary shift centers on the emergence of the 32-inch wheel—a platform often referred to as the “32er.” Far from being a niche experiment relegated to custom frame builders, the 32-inch wheel is being positioned by major industry stakeholders as a performance-driven evolution for professional cross-country (XC) and long-distance endurance racing.
This transition is formally codified by the UCI, which has confirmed it will not impose a maximum wheel-size cap for MTB in 2026—effectively permitting 32-inch wheels. Coverage to date has focused on XCO World Cups, and reporting suggests the same stance applies across MTB disciplines, though the UCI has indicated it is monitoring the technology closely.
This regulatory green light has catalyzed a technological arms race among manufacturers, as engineers attempt to balance the undeniable rolling advantages of a larger diameter against the significant packaging and kinetic penalties inherent in such a massive platform.
Anatomy and Dimensional Standards of the 32-Inch Wheel
To evaluate the 32-inch wheel effectively, particularly in the context of the “29 vs 32 wheels” debate, it is necessary to establish precise dimensional benchmarks. While marketing terms like “29-inch” and “32-inch” provide a general sense of scale, the European Tyre and Rim Technical Organisation (ETRTO) standards offer the technical precision required for engineering analysis. The 32-inch standard utilizes a Bead Seat Diameter (BSD) of 686 mm. In comparison, the established 29-inch (700c) standard features a BSD of 622 mm, and the 27.5-inch (650b) standard sits at 584 mm.
The shift from a 29-inch to a 32-inch rim represents a 10.29% increase in internal diameter, a leap that is significantly larger than the 6.51% increase observed during the transition from 27.5 to 29 inches. When accounting for the tire casing, the total outer diameter of a 32-inch assembly reaches approximately 813 mm (32 inches), depending on the tire’s volume and tread profile. A direct comparison of the Maxxis Aspen tire in both sizes reveals that the 32-inch version possesses an outer diameter 64 mm larger than its 29-inch counterpart. This physical expansion necessitates a 32mm increase in the fork’s axle-to-crown measurement just to maintain the same clearance, a factor that initiates a cascade of geometry challenges for frame designers.
Primary Wheel Size Dimensional Comparison
| Wheel Standard | Bead Seat Diameter (BSD) | BSD Increase from Previous Size | Estimated Outer Diameter (with 2.4″ tire) | ETRTO Baseline |
| 26 Inch | 559 mm | Baseline | ~660 mm | 559-xx |
| 27.5 Inch (650b) | 584 mm | 4.47% | ~700 mm | 584-xx |
| 29 Inch (700c) | 622 mm | 6.51% | ~745 mm | 622-xx |
| 32 Inch (32er) | 686 mm | 10.29% | ~813 mm | 686-xx |
The Physics of Performance: Technical Advantages of the 32-Inch Platform
The theoretical justification for the 32-inch wheel is rooted in the same physical principles that propelled the 29er to market dominance: rollover capability, momentum preservation, and traction optimization. However, the 32-inch standard amplifies these traits to a degree that redefines how a bicycle interacts with the terrain.

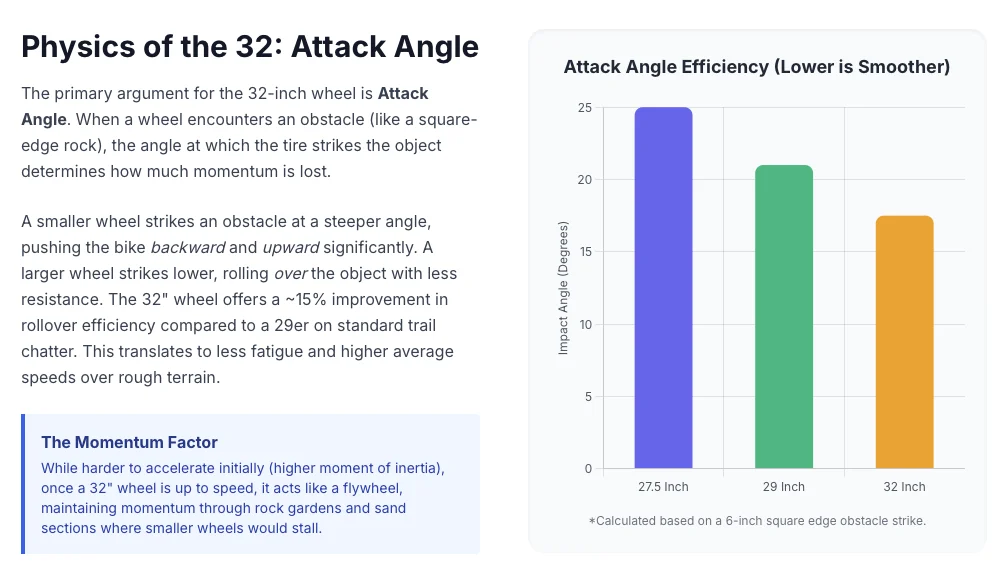

Rollover Efficiency and the Angle of Attack
The primary performance advantage of the 32-inch wheel is its superior rollover capability, a product of a significantly shallower angle of attack. When a wheel encounters an obstacle, the angle at which it contacts the object determines the amount of horizontal momentum converted into vertical displacement. The angle of attack ($\alpha$) can be calculated relative to the wheel radius ($R$) and the obstacle height ($h$) using the formula:
$$\alpha = \arccos\left(1 – \frac{h}{R}\right)$$
As $R$ increases, the angle $\alpha$ decreases. A 32-inch wheel (radius $\approx 406$ mm) approaching a 100mm-high rock hits it at a much shallower angle than a 29-inch wheel (radius $\approx 372$ mm). In practical trail applications, this means the wheel experiences less “hang-up” on square-edge hits. Riders testing prototypes like the BMC Fourstroke 32 have noted that sections of rough trail are “muted,” with the larger diameter allowing the bike to maintain speed through rock gardens and root sections that would typically require active unweighting or a reduction in velocity on a 29er. This rollover benefit is particularly evident on technical climbs, where the wheel can claw over ledge-like obstacles without the rider losing their pedal cadence.
Momentum Conservation and the Flywheel Effect
The 32-inch wheel acts as a more efficient flywheel than any previous standard. Because the mass of the rim and tire is concentrated further from the axle, the wheel possesses a higher moment of inertia. The moment of inertia ($I$) for a simplified hoop is defined by:
$$I = mR^2$$
Given that the radius ($R$) is a squared variable in this equation, the increase in resistance to changes in rotational speed is substantial. While this makes the 32-inch wheel more difficult to accelerate from a standstill, it also makes it exceptionally good at resisting deceleration caused by terrain friction or wind resistance. Once a 32-inch-equipped bike reaches cruising speed, it requires less energy input to maintain that velocity compared to a 29er, a trait that is highly advantageous for endurance racing and high-speed “marathon” style XC courses.
Contact Patch Dynamics and Traction
The increase in diameter naturally leads to a larger contact patch—the area of the tire in contact with the ground. In the context of “29 vs 32 wheels,” the 32-inch tire provides a contact patch that is approximately 10% longer than that of an equivalent 29-inch tire. This elongated footprint enhances traction in several ways:
- Braking and Climbing Grip: A longer contact patch places more tread knobs in contact with the ground simultaneously, providing more mechanical keying into loose or slippery surfaces.
- Reduced Tire Pressure: The greater air volume within a 32-inch tire allows riders to lower their tire pressures by approximately 10% compared to a 29er without increasing the risk of rim strikes. This lower pressure further deforms the tire over obstacles, increasing grip and vibration damping.
- Cornering Stability: Kinematic modeling suggests a 10% to 12% increase in usable cornering grip, as the tire operates further from its traction limit at the same lean angle compared to a smaller wheel.
Technical Disadvantages: The Kinetic and Engineering Penalties
The adoption of 32-inch wheels is not without significant trade-offs. The same physics that provide rolling advantages also introduce penalties in weight, inertia, and maneuverability.
Rotational Mass and Acceleration
The most tangible disadvantage is the increase in weight. A 32-inch wheel system—including the rim, tire, spokes, and sealant—is approximately 250 grams heavier per wheel than a comparable 29-inch setup. When integrated into a complete bike, the total weight penalty often ranges from 600 grams to 1.3 kilograms.
Because this mass is rotational, its impact on performance is non-linear. The energy required to accelerate a 32-inch wheel from a stop or out of a tight corner is considerably higher than that of a 29er. For XC racers on courses characterized by frequent speed changes and steep, punchy climbs, this added inertia can negate the rolling resistance gains. This creates a “tipping point” where the terrain must be sufficiently open and fast for the 32er to remain the faster option.
Gyroscopic Forces and Handling
The stability provided by a large rotating mass comes at the expense of agility. As a wheel spins, it generates gyroscopic forces that resist changes in its plane of rotation. The high gyroscopic forces of a 32-inch wheel make the bike exceptionally stable at high speeds, but they demand significantly more physical effort from the rider to initiate a turn or flick the bike between obstacles.
Riders on 32-inch prototypes have reported that steering feels “delayed,” requiring them to open up their cornering lines into “large, swooping arcs” rather than the snappy maneuvers possible on a 29er or 27.5-inch bike. Furthermore, the increased wheelbase required to clear the larger wheels inherently increases the bike’s turning radius, potentially making it cumbersome on tight, technical switchbacks.
Structural Stiffness and Lever Arms
From an engineering perspective, a larger wheel is inherently weaker and less stiff than a smaller one, assuming the use of identical materials. The longer spokes and larger rim circumference of a 32-inch wheel create longer lever arms, which can lead to increased lateral flex under load. To counteract this, manufacturers are forced to use more material—increasing weight—or develop new standards, such as wider hub flanges or higher spoke counts (32 or 36 holes), to maintain the structural integrity required for aggressive off-road riding.
Frame Geometry and Packaging Challenges
The most daunting task for bicycle engineers is integrating 32-inch wheels into a frame without ruining the rider’s ergonomics. The physical size of the wheels forces several radical departures from traditional geometry.
The Stack Height and Front-End Paradox
A 32-inch front wheel significantly raises the front end of the bike. To accommodate the wheel and a suspension fork, the axle-to-crown measurement must be roughly 32mm longer than that of a 29er. For a standard XC bike, this raises the head tube by approximately 64mm, which can be disastrous for a rider’s preferred “stack” height.
To solve this, designers are utilizing extreme measures:
- Negative Rise Stems: Prototypes often feature stems with drops ranging from -20° to -40° to get the handlebars back down to a race-appropriate height.
- Ultra-Short Head Tubes: Frames are being designed with the shortest possible head tubes to mitigate the height of the larger front wheel.
- Inverted Bars: Some teams have even mounted riser bars upside down to achieve the necessary handlebar drop.
Rear Suspension and “Ass Clearance”
Integrating a 32-inch wheel into the rear of a full-suspension frame is equally difficult. As the rear suspension compresses, the large wheel moves toward the seat tube and the rider’s saddle. This creates a “packaging constraint” that limits suspension travel. To maintain adequate clearance for the rider—particularly shorter riders—many 32-inch full-suspension prototypes are capped at 80mm to 100mm of travel.
Additionally, to fit the wheel behind the bottom bracket while maintaining chainring clearance, designers often have to lengthen the chainstays. While longer chainstays (e.g., 460mm+) improve climbing traction and high-speed stability, they further contribute to the bike’s reduced agility in tight sections.
Proportional Sizing: The “Tall Rider” Advantage
While the 32-inch wheel presents packaging headaches for average-height riders, it is a revelation for exceptionally tall cyclists. For riders over 6’4″ (193 cm), a 29-inch wheel can often feel disproportionately small, leading to bikes that feel “twitchy” or leave the rider feeling perched “on top” of the bike rather than “in” it.
The 32-inch wheel allows for a bike with proportions that match a larger human frame. Brands like Zinn Cycles and DirtySixer have specialized in this niche for years, using 32-inch and even 36-inch wheels to build bikes that offer tall riders the same stability and confidence that a 29er offers a medium-sized rider.
| Geometry Attribute | 29″ XC Bike (Standard) | 32″ XC Bike (Prototype/Custom) | Effect of 32″ Wheels |
| Chainstay Length | 430 – 440 mm | 455 – 470 mm | Increases stability, reduces agility |
| Stack Height | 590 – 610 mm | 650 – 680 mm | Significant rise; requires negative stems |
| BB Drop | 35 – 45 mm | 60 – 80 mm | Needed to keep center of gravity low |
| Wheelbase | 1150 – 1200 mm | 1230 – 1280 mm | Increases high-speed composure |
| Fork Offset | 44 – 51 mm | 46 – 55 mm | Adjusts for increased trail of larger wheels |
Market Positioning: Where Does the 32-Inch Wheel Fit?
The “29 vs 32 wheels” debate is not a binary conflict; rather, it is a question of application. The 32-inch wheel is poised to occupy specific market segments where its benefits outweigh its drawbacks.
Professional XC Racing: The Ultimate Testing Ground
The UCI’s 2026 rule change is the most critical factor in the 32-inch wheel’s future. In the world of elite XC, where races can be won or lost by seconds, the rolling efficiency of a larger wheel on certain courses is too significant to ignore. Teams like BMC and Stoll have already invested heavily in 32-inch development, betting that on fast, non-technical tracks, the 32er will provide a decisive advantage.
Gravel and Ultra-Endurance
Beyond the mountain bike world, the 32-inch wheel is finding interest in the gravel and bikepacking communities. In “ultra” races where riders cover hundreds of miles of non-technical dirt roads, the ability of a 32-inch wheel to maintain momentum and provide comfort through superior rollover is a major asset. Schwalbe has explicitly stated that they see advantages for the 32-inch size “across market segments,” including gravel.
The “Mega-Mullet” Concept
A potential solution to the agility and packaging issues is the “mullet” configuration—pairing a 32-inch front wheel with a 29-inch rear wheel. This setup provides the front-end benefits of superior rollover and a massive contact patch for cornering grip, while the 29-inch rear wheel allows for shorter chainstays, more suspension travel, and better acceleration. This configuration is already being tested on downhill and enduro prototype bikes.
Rules note: mixed wheel sizes are a DH/Enduro conversation. XC has historically required matching wheel sizes front/rear, so a 32/29 “mega-mullet” is unlikely to be XC-legal in the near term.
Manufacturing and Supply Chain Maturity
The viability of any new wheel standard depends on the availability of high-quality components. As of 2025 and moving into 2026, the 32-inch supply chain is rapidly maturing.
Tires: The Primary Bottleneck
Historically, 32-inch tires were limited to heavy, low-performance unicycle tires. However, Maxxis has recently made a major investment in custom machinery to produce the 32 x 2.4-inch Aspen, a high-performance XC race tire. Schwalbe is expected to follow with a range of 32-inch tires in 2027. The creation of these tires requires entirely new molds and curing equipment, a multi-million dollar investment that signals industry confidence in the standard.
Forks: Inversion and Specialized Chassis
Traditional suspension forks with a lower-leg arch present a clearance problem for 32-inch wheels. Consequently, boutique brands like Intend have taken the lead with inverted fork designs. Because inverted forks have no arch, they can accommodate larger wheels simply by extending the dropouts or reducing travel. The Intend Samurai 32 is currently the only mass-market suspension fork dedicated to the 32-inch standard. Major players like Fox and RockShox are rumored to be developing 32-inch specific chassis, but their 2026 focus remains on refined 29-inch models for the mass market.
Rims and Wheels
Carbon rim options are beginning to appear from niche suppliers like Nextie (Unicorn 32) and Duke (Lucky Jack 32), using modern layups to keep 686 BSD hoops as light as possible. On the more affordable end, Velocity offers a 32” (686 BSD) alloy rim (Blunt 35 32), which lowers the barrier for riders who want to experiment with the platform via a custom build. Prototype wheel concepts (e.g., Bike Ahead’s scaled-up BiTurbo 32 approach) also signal where the high-end market may go next, though availability remains limited.
Case Study: The Stoll P32 and the Future of Production 32ers
The Stoll P32 represents the first legitimate attempt at a production-ready, high-performance 32-inch full-suspension bike. Unveiled in late 2025, the P32 highlights both the potential and the exclusivity of the new standard.
Stoll P32 Build Configurations and Weights
| Model Variant | Key Components | Claimed Weight | Estimated Price (EUR) |
| P32 Lightweight | XX SL, Trickstuff Brakes, Duke Rims | 10.9 kg | €12,871 |
| P32 European | XX SL, Intend Shock, Biturbo Wheels | 11.3 kg | €13,724 |
| P32 Performance | XX Trans, XTR Brakes, Lucky Jack Rims | 11.6 kg | €10,891 |
| P32 Daily | GX Trans, XT Brakes, Aluminum Rims | 12.3 kg | €9,403 |
The P32 utilizes a “flex-stay” rear triangle, a design choice made to save weight and offset the penalty of the larger wheels. Interestingly, Stoll has indicated that their internal testing showed every test rider was “quicker than ever” on the 32-inch platform, experiencing less fatigue during long efforts. The bike’s availability in sizes M and L (for riders 170cm to 195cm) suggests that the brand believes the 32-inch wheel can work for a broader range of athletes than just the exceptionally tall.
Frequently Asked Questions
Does the 32-inch wheel require a new hub standard? Currently, most 32-inch bikes utilize standard “Boost” (110x15mm front, 148x12mm rear) or “SuperBoost” (157x12mm rear) hubs. However, due to the decreased lateral stiffness of larger wheels, some engineers suggest that even wider hub standards may be necessary in the future to maintain wheel stability.
How does gearing change for 29 vs 32 wheels? Because a 32-inch wheel has a larger circumference, one revolution of the wheel covers more distance than a 29er. This effectively makes the gearing “harder.” To maintain the same gear-inch range, riders typically need to use a smaller front chainring—for example, switching from a 34T chainring on a 29er to a 30T or 32T on a 32er.
Will 32-inch wheels fit in a standard 29-inch fork? No. The 32-inch wheel has a radius roughly 32mm larger than a 29er, meaning it will contact the arch of any standard 29-inch fork. Specialized 32-inch forks or inverted forks with no arch are required.
Are 32-inch wheels more prone to breaking? Theoretically, yes. The larger diameter and longer spokes create more leverage, which can lead to wheel failure under extreme side-loading. However, high-end carbon rim construction and optimized spoke patterns are being used to mitigate these risks.
Can I run a 32-inch wheel as a front wheel on my current 29er? Generally, no. Even if you were to install a 32-inch specific fork, the increase in axle-to-crown height would radically slacken your bike’s head tube angle and raise the bottom bracket, likely ruining the bike’s handling and putting excessive stress on the frame’s head tube junction.
The Final Verdict: Trend or Long-Lasting Option?
The question of whether the 32-inch wheel is a fleeting trend or a permanent addition to the mountain bike lexicon depends on its adoption by the professional racing community. In the “29 vs 32 wheels” debate, the 29er remains the superior choice for the majority of riders due to its balance of weight, agility, and frame compatibility. However, the 32-inch wheel provides a tangible physics-based advantage in rollover and momentum that cannot be ignored.
As component manufacturing matures and frame designers find more creative ways to manage the “packaging puzzle,” the 32-inch wheel is likely to establish itself as a specialized tool. It will thrive in World Cup XC, ultra-endurance racing, and among tall riders who have long been underserved by existing standards. While it may not make the 29er obsolete, the 32-inch wheel is a legitimate evolution that pushes the boundaries of how fast and efficiently a bicycle can move across rough terrain. Moving toward 2027 and 2028, the market will likely settle into a three-tier system: 27.5 inches for park and play, 29 inches for general trail and enduro, and 32 inches for outright speed and endurance.
