Is this the over-engineered, light-integrated, Kashima-coated bike hauler of your dreams? We dive deep to find out.

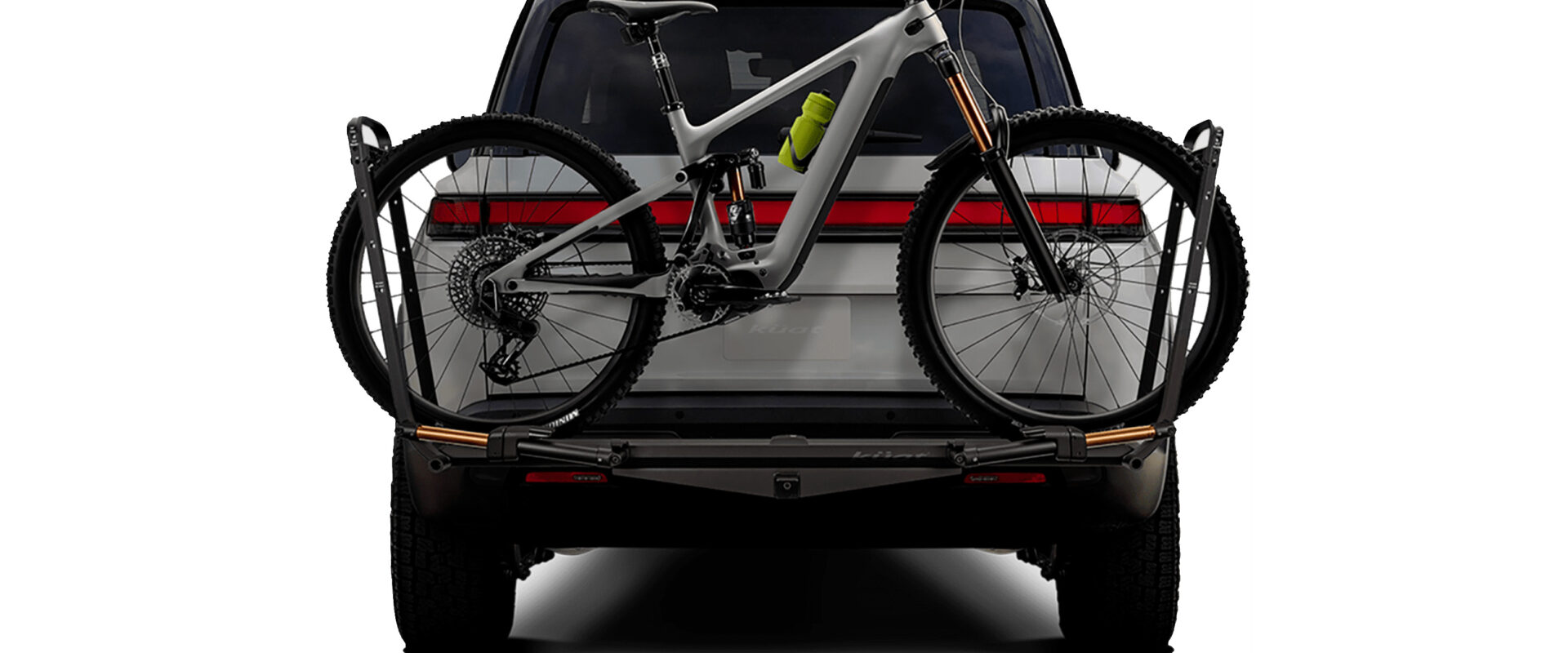

When Kuat announced the Piston Pro X, it didn’t just look like a new bike rack; it looked like a piece of aerospace equipment. With Hydro-pneumatic Kashima arms, integrated LED tail lights, and a completely Touchless tire grabsystem, Kuat wasn’t trying to compete with the market—they were trying to leave it behind entirely.
But does a rack with a price tag rivaling a decent mountain bike actually deliver? We’ve scoured the internet, analyzed specs, and compared it against the heavyweights to bring you the most comprehensive review of the Kuat Piston Pro X on the web.
Features, Specs, and Current Pricing

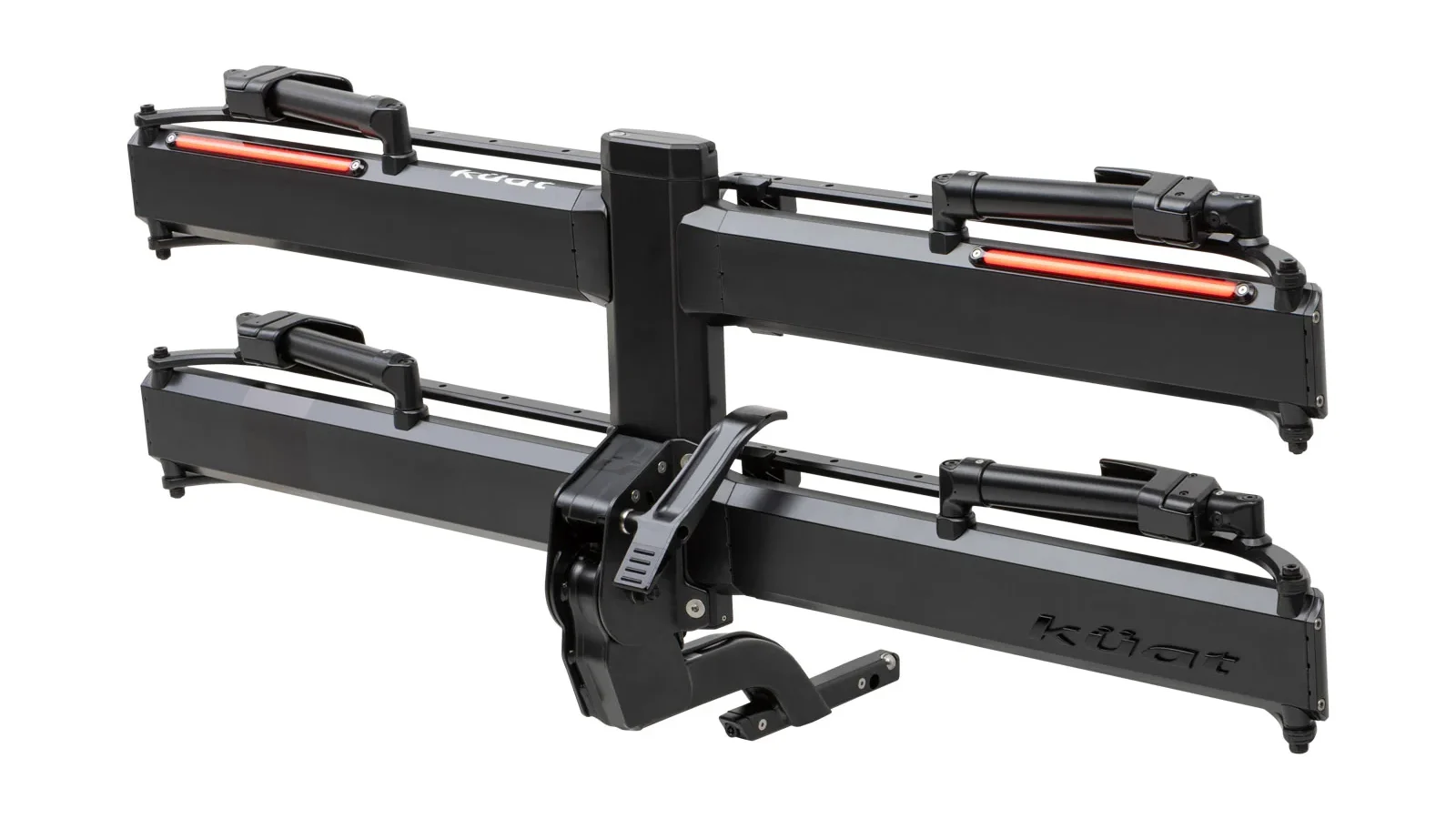

The Piston Pro X is defined by its materials. Gone is the plastic found on many competitors; this rack is 99% metal, constructed primarily of aluminum and steel.
The “Star” Features

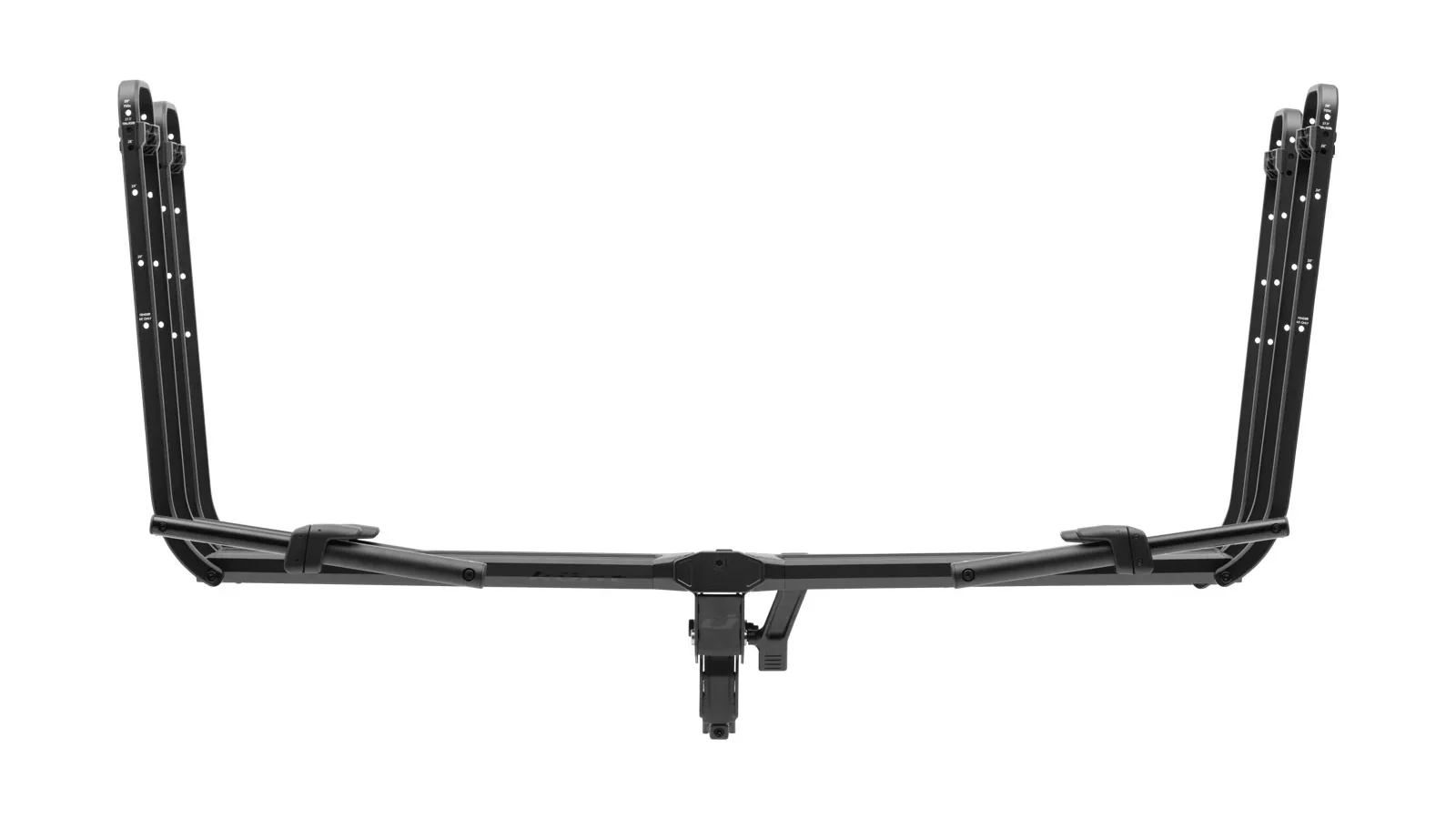

- OneTap™ Hydro-Pneumatic Arms: The headline feature. The arms are coated in Genuine Kashima Coat (the same buttery-smooth gold coating found on high-end Fox suspension forks). You tap the lever, and the hydro-pneumatic struts automatically open the arms wide.
- Touchless Tire Grab: The arms ratchet down onto the tires only. There is zero frame contact, making it safe for carbon frames, funky paint jobs, and difficult suspension designs.
- Integrated LED Lights: Two flexible LED strips are built into the rack. They sync with your vehicle via a flat 4-pin connector to provide brake, turn, and running lights, solving the issue of bikes blocking your vehicle’s tail lights.
- FastFit™ Wheel Chock System: Adjusting for wheel sizes (18″ to 29″) is tool-free. You simply squeeze the chock and slide it.
- Magnetic Quick-Connects: If you buy the add-on trays to carry 3 or 4 bikes, there are no wires to plug in. The electrical signal for the lights transfers through magnetic connectors automatically.
The Specs (2″ Receiver Model)
- Weight Capacity: 67 lbs per bike (holds 2 bikes standard).
- Wheelbase Compatibility: Up to 53 inches.
- Tire Width: Up to 5 inches (Fat bike ready out of the box).
- Rack Weight: ~63 lbs.
- Locks: Integrated 12mm cable lock (semi-integrated into the frame) and a stainless steel hitch lock.
- Hitch Cam: FlatLock™ hitch cam (tightens inside the receiver to eliminate wobble).
- Warranty: Kuat No Worries Limited Warranty.
Current Pricing: The Kuat Piston Pro X generally retails around $1,589 for the 2-bike version. Add-on trays (1-bike or 2-bike) range from roughly $898 to $1,300.
The Good, The Bad, and The Beautiful
Every piece of gear has a personality. After sifting through the specs and real-world feedback, here is the honest truth about living with the Piston Pro X.
Why You’ll Love It (The Pros)
The “OneTap” Experience Let’s not mince words: this is the party trick that justifies the price tag. The OneTap™ hydro-pneumatic arms are not just a mechanism; they are an experience. While other racks require you to muscle a ratcheting arm over a tire, the Piston Pro X glides open with the push of a lever. It feels less like loading a bike rack and more like opening the door of a luxury car. It’s genuinely one-handed operation—a godsend when you’re balancing a 50lb e-bike with your other hand.

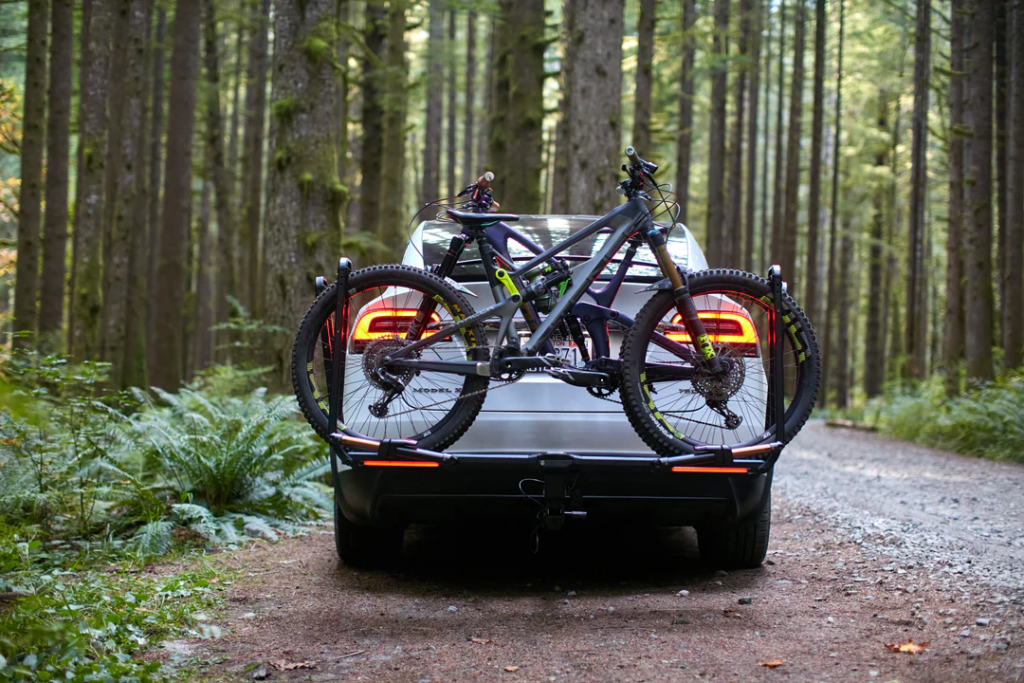

Safety That Actually Looks Cool Kuat didn’t just slap some reflectors on this rack; they integrated full LED tail lightsthat sync with your vehicle’s brake, turn, and running lights. In an era where modern mountain bikes are practically the size of dirt bikes, they often block your vehicle’s tail lights completely. These integrated LEDs aren’t a gimmick—they are a legitimate safety upgrade that ensures the driver behind you knows exactly when you’re stopping.
Bombproof Build Quality There is virtually no plastic on this rack. The 99% metal construction, finished in a Tiger Drylac powder coat, feels substantial. It is designed to take abuse, resist rock chips, and handle the elements far better than the anodized aluminum or plastic-heavy composites of its competitors. It doesn’t rattle, it doesn’t flex, and it feels like a permanent extension of your vehicle.
The “Kashima” Factor Aesthetically, this rack is in a league of its own. The Genuine Kashima Coat on the struts—the same ultra-slick, gold-anodized coating found on high-end Fox suspension forks—serves two purposes. Functionally, it ensures the arms never bind and remain silky smooth for years. Visually, it pops against the dark metallic grey chassis, signaling to everyone at the trailhead that you appreciate (and pay for) top-tier engineering.
Zero Contact, Zero Stress For the owner of a carbon super-bike or a custom-painted frame, the “Touchless” tire grab is non-negotiable. The arms touch only the rubber of your tires. There are no straps to rub your rims raw and no clamps to crush your carbon top tube.
The Reality Check (The Cons)
The Sticker Shock There is no way around it: $1,589 (approx.) is a massive sum for a bike rack. For that price, you could buy a decent entry-level mountain bike. You are paying a premium for the engineering, the materials, and the aesthetics. Is it three times better than a $500 rack? Functionally, maybe not. But experientially? Absolutely.
It’s a Heavyweight Weighing in at roughly 63 lbs, the Piston Pro X is a beast. Unlike the Thule T2 Pro XTR, which has integrated wheels to help you roll it into the garage, the Piston Pro X requires a deadlift. If you plan to take your rack on and off your car every weekend, your back will hate you. This rack is best suited for people who plan to install it and leave it there for the season.
Security is “Good Enough,” Not Perfect Kuat includes a semi-integrated 12mm cable lock that is convenient and plenty long enough to weave through frames and wheels. However, let’s be real: it is a deterrent for honest people. A determined bike thief with a standard pair of bolt cutters can snip a 12mm cable in seconds. It’s great for a gas station stop, but don’t leave your $10,000 bike on it overnight in a hotel parking lot.
The RV “Fine Print” This is a critical nuance often missed. While the rack is “RV Rated,” you must read the fine print. It is fully approved for Class B (Camper Vans) without issue. However, if you plan to mount this on a travel trailer or 5th wheel, the weight capacity drops significantly (often down to ~42 lbs per bike) due to the extreme “whipping” forces at the back of a trailer. If you are hauling heavy e-bikes on a travel trailer, this rack—despite its burly looks—may technically be under-gunned per the warranty terms.
Check Current Pricing & Availability at Jenson USA
Comparison: Piston Pro X vs. The Competition
How does it stack up against the 1Up Equip-D and the Thule T2 Pro XTR?
| Feature | Kuat Piston Pro X | 1Up USA Equip-D (Double) | Thule T2 Pro XTR |
| Price | ~$1,589 | ~$900 – $950 | ~$850 – $900 |
| Weight Capacity | 67 lbs / bike | 50 lbs / bike | 60 lbs / bike |
| Max Wheelbase | 53″ | 56″ | 50″ |
| Frame Contact | None (Tire hold) | None (Tire hold) | None (Tire hold) |
| Integrated Lights | Yes (Standard) | No (Sold separately) | No |
| Operation | Pneumatic (Auto-open) | Manual Ratchet | Manual Ratchet |
| Materials | 99% Metal | 100% Aluminum | Aluminum & Plastic |
| Warranty | Lifetime (Limited) | Lifetime | Lifetime (Limited) |
| Best For | Tech lovers, E-Bikes, Safety | Purists, Modular needs | General usability |
Export to Sheets
Analysis: The Piston Pro X wins on weight capacity and integrated tech. 1Up wins on modularity (you can buy it as a single rack) and pure durability (anodized aluminum doesn’t rust). Thule is the “safe” standard choice but feels plasticky compared to the Kuat.
Who is this rack for?
- The E-Bike Rider: With a 67lb limit per tray, it handles heavy E-MTBs easily.
- The “Super Bike” Owner: If you ride a $10k+ S-Works or Yeti, you want a rack that matches the quality of your bike and ensures no frame damage.
- The Tech Enthusiast: If you love gadgets, the Kashima coating and pneumatic pistons are incredibly satisfying to use.
- Safety Conscious Drivers: If you drive a smaller SUV or crossover where bikes block your lights, the integrated LEDs are a game-changer.
Who is it NOT for?
- Budget Shoppers: You can get a rack that holds bikes safely for $500. This is a luxury item.
- Trailer/5th Wheel Owners: If you tow a travel trailer, this rack is likely not approved for the back of it (check Kuat’s specific “RV Compatibility” warning for non-motorized RVs).
- People with weak backs: Moving this 63lb beast on and off the car is difficult. If you need to take the rack off weekly, look at the lighter 1Up or Kuat Sherpa.
FAQ
Q: Does the Kashima coating actually do anything? A: Functionally, it makes the action smoother and more durable against corrosion, but in reality, it’s largely aesthetic. It looks incredible and signals “high-end.”
Q: Can I open the tailgate with bikes on? A: Yes, the Piston Pro X has a foot-pedal tilt mechanism that lowers the rack (with bikes loaded) to allow trunk access on most SUVs and trucks.
Q: Do I need to wire the lights into my car’s brake system? A: No. It uses a standard 4-pin flat trailer connector. If your vehicle has a tow package, you just plug it in. If you have a 7-pin round connector, you can buy a cheap adapter at any auto parts store.
Q: Will it rust? A: It is highly resistant. The aluminum and steel construction is powder-coated with Tiger Drylac, and the hardware is stainless steel. However, if you live in an area with heavy road salt, you should rinse it occasionally, as with any metal product.
Q: Can it hold kids’ bikes? A: Yes. The wheel chocks adjust down to fit 18-inch wheels without any extra adapters.
Verdict
The Verdict: Is the Piston Pro X Worth the Investment?
To call the Kuat Piston Pro X just a “bike rack” feels like an understatement. It is a piece of automotive jewelry that happens to carry bicycles. In a market flooded with utilitarian racks that rattle, fade, and require two hands and a knee to operate, the Piston Pro X stands alone as the undeniable “Supercar” of the category.
Is it over-engineered? Absolutely. Is it expensive? Without question. But for the dedicated cyclist, the value proposition here isn’t just about holding a bike—it’s about removing friction from your ride. The OneTap™ hydro-pneumatic armschange the entire dynamic of loading up. There is no wrestling with sticky ratchets or worrying about rubbing frame paint. You simply tap a lever, watch the arms glide open, and load your bike. It turns a chore into a satisfying interaction.
Furthermore, the safety upgrade provided by the integrated LED lighting cannot be overstated. As mountain bikes get longer and slacker, they effectively become walls that hide your vehicle’s brake lights. The Piston Pro X solves this critical safety gap elegantly, without requiring you to run aftermarket light kits or messy wires.
The Bottom Line: If you are looking for the most economical way to get from A to B, this rack is not for you. But if you subscribe to the “buy once, cry once” philosophy and want a product that matches the quality of the high-end bikes you are hauling, the Piston Pro X is the new gold standard. It is heavy and it is an investment, but it is also the most refined, user-friendly, and durable rack we have ever tested. It is, quite simply, the current King of the Hill.
